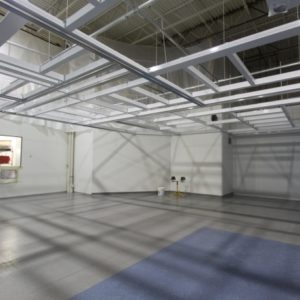

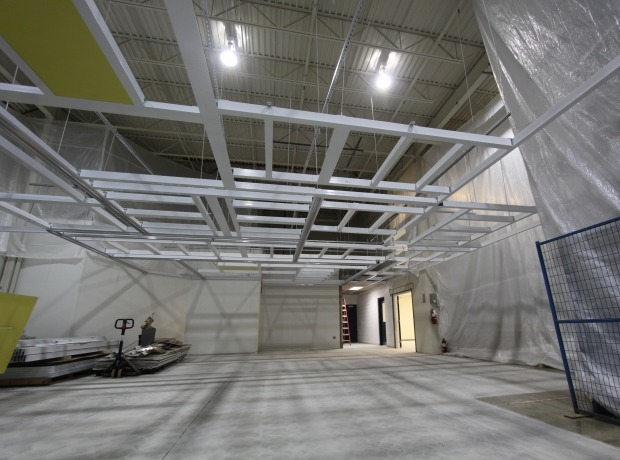

Cleanroom Floor Preparation
Cleanroom Floor Preparation

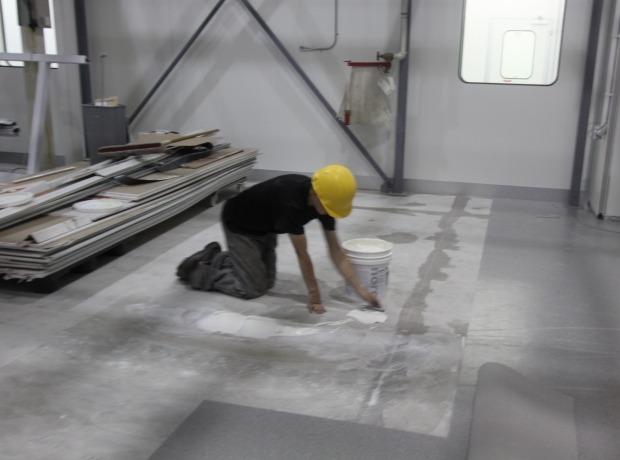

Cleanroom nora Rubber Floor Installation
Cleanroom nora Rubber Floor Installation

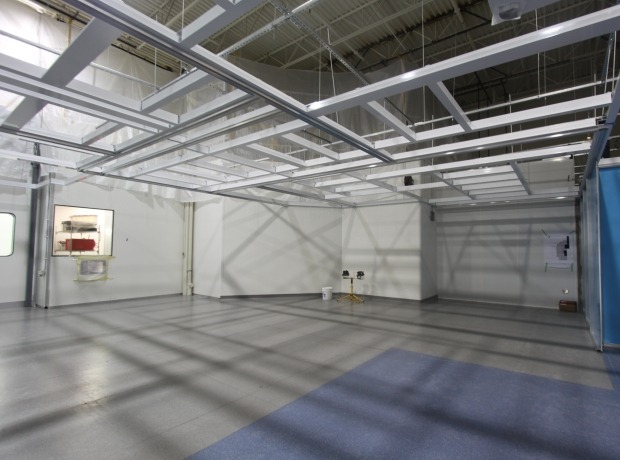

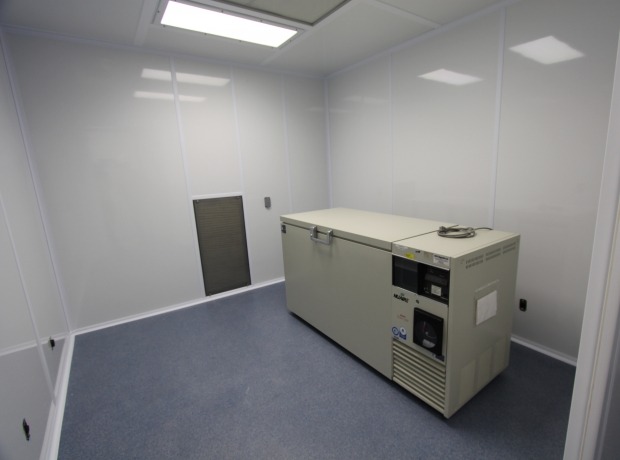

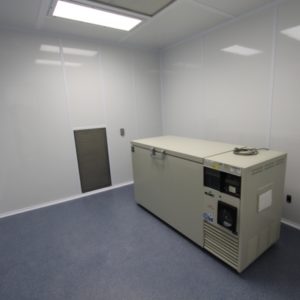

Cleanroom nora Rubber Floor
Cleanroom nora Rubber Floor
Cleanroom Seamless Vinyl Flooring
Cleanroom Seamless Vinyl Flooring

Cleanroom Floors

The bulk of the contamination in a Cleanroom resides on the floor. It is important that consideration be given to the best flooring solution for your application.

The main types of Cleanroom flooring:

Rubber – Cold Welded

Seamless Vinyl

Epoxy Coatings & Troweled On

MMA – Methyl Methacrylate Flooring

Urethane

VCT

Raised Floors





Rubber Flooring

We highly recommend nora Rubber Flooring, which is a rubber sheet good, which comes in 1 Metre Square Sheets (Approximately 10 Square Feet).

It is then cold welded in place and buff cleaned.

Industrial and life sciences facilities can use rubber floor coverings to better satisfy a broad range of operational and design requirements.

From extraordinary wear resistance (to handle the constant operation of forklift trucks) to static dissipative grounded flooring for use in cleanrooms and research labs working on sensitive electronics, nora rubber floor coverings offer exceptional durability, distinctive design options and cost-effective, easy-to-maintain industrial flooring solutions.

For industrial operations and life sciences research labs and production areas, nora rubber floor coverings set new standards for quality, functionality and design.

nora Rubber Flooring
nora Rubber Flooring

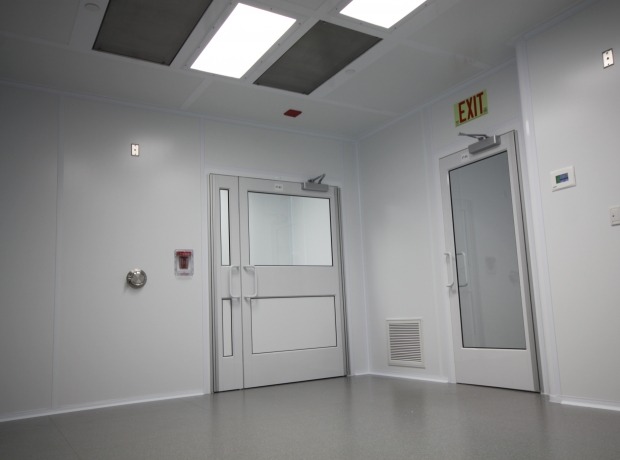

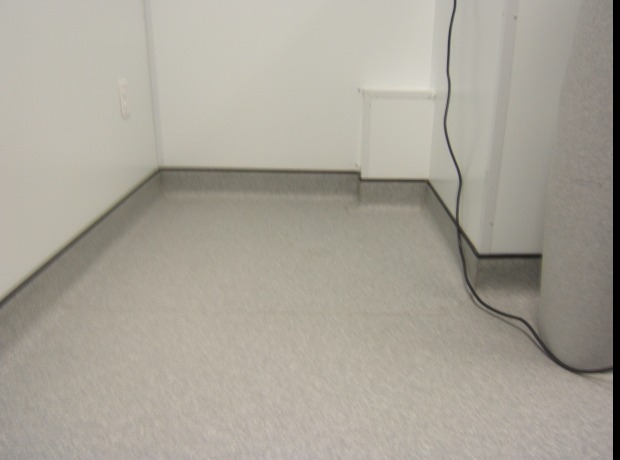

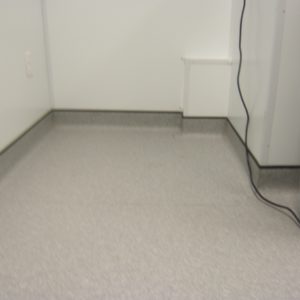

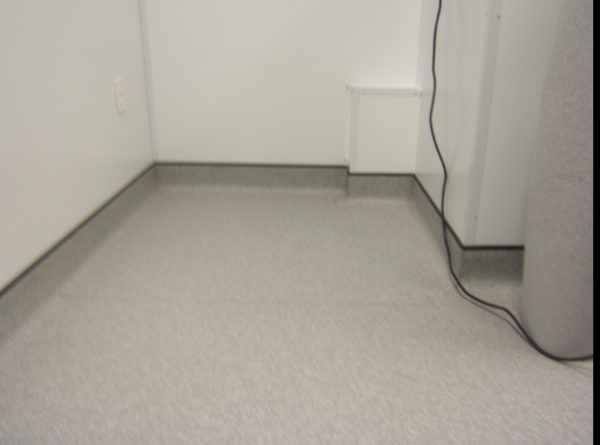

Cleanroom Seamless Vinyl Flooring
Cleanroom Seamless Vinyl Flooring

Vinyl Seamless

Seamless vinyl flooring is a cost effective solution for small Cleanrooms where there is no requirement for the weight loading capacity of a Elastomeric Coatings such as Epoxy, Urethane or MMA.

Seamless flooring can also be coved up the walls to give it excellent clean ability at the walls and corners.

Disadvantages

Does not hold up under repeated heavy traffic.





Epoxy Coatings

An Epoxy coating system is designed to provide aesthetic enhancement and protection to a surface. The best situation in which to specify a coating is where the concrete substrate is in good condition with minimal spalling or cracking. Because an Epoxy coating is dense, seamless and has low porosity, it is easy to clean and maintain. Coatings are available in a variety of colors, allowing you to match your floor’s new look to the rest of the environment.

Usually applied in 10-25 mils the system fills in small imperfections in a floor’s surface, so there is some levelling. The coatings are generally recommended for assembly and light manufacturing areas

While epoxy coatings offer good to excellent resistance against many chemicals and are easy to clean, urethanes offer better stain resistance.

Applications involving exposure to harsh chemicals may require corrosion control systems.

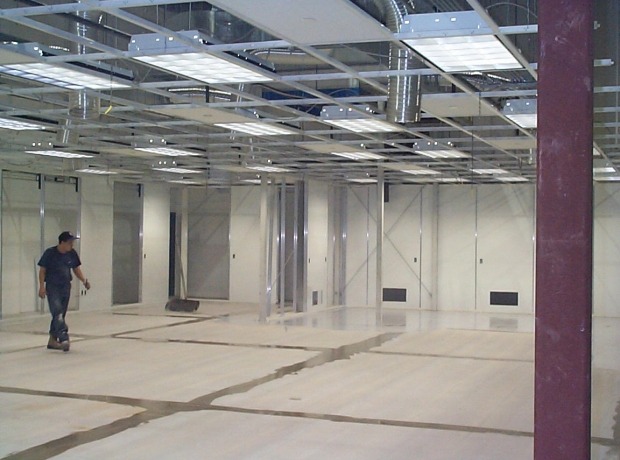

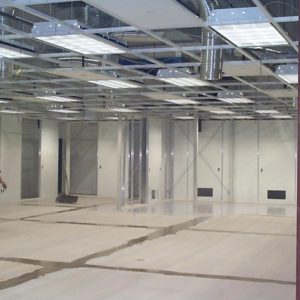

Epoxy Floor Preparation
Epoxy Floor Preparation

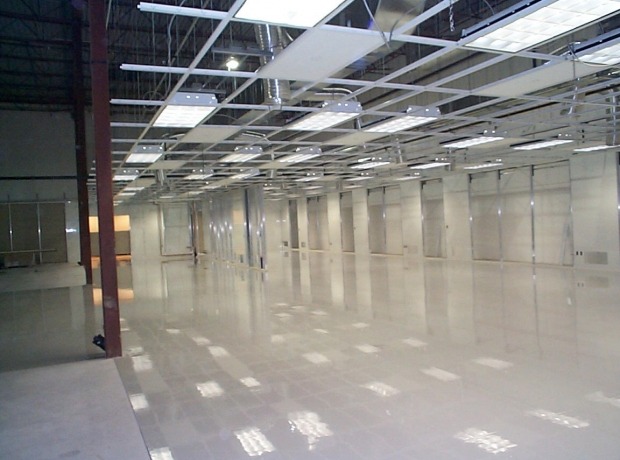

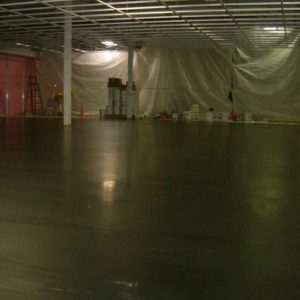

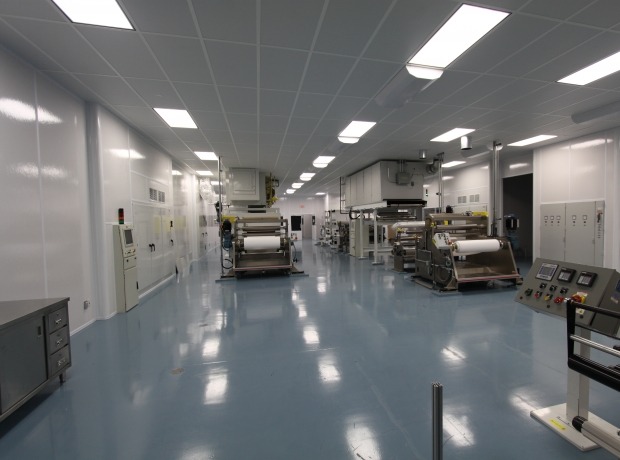

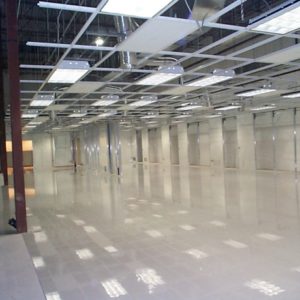

Cleanroom Epoxy Floor
Cleanroom Epoxy Floor

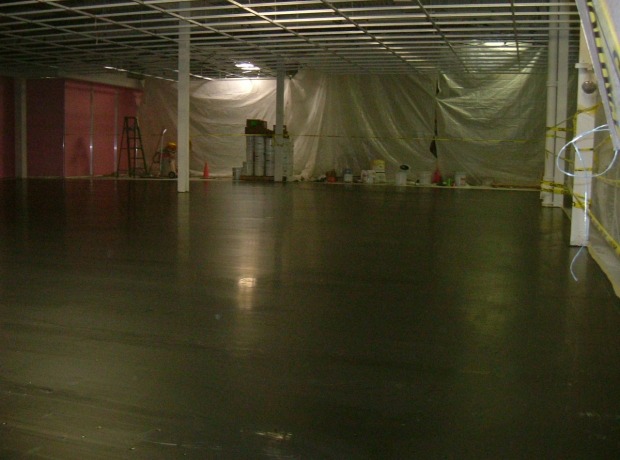

Epoxy ESD Undercoat
Epoxy ESD Undercoat

Epoxy Coatings

Coatings for Concrete, Metal & Previously Coated Floors
High-Gloss Reflective Coatings Available
Wall Coatings
Easy-to-Clean & Maintain
100% Solids & Waterborne Coatings Available
Dense Seamless with Low Porosity
All Colors Available
Excellent Impact & Abrasion Resistance
Environmentally Friendly
Low Odour

ESD Control Systems

In industries where electronic components or volatile chemicals are involved, static electricity can result in significant damage, injury and financial loss. Even when people are equipped to handle static-sensitive devices, inadvertent contact can occur. ESD floor, wall and ceiling coatings and toppings can tie your entire ESD system together.





MMA

Methyl Methacrylate Acrylic Flooring

The advantages of Methyl Methacrylate Acrylic Flooring are:

Fast Cure (less than 1 hour)

Temperature insensitive (cures at -20oF)

Strength with Resilience

Low-glare Matte Satin Finish

Can have Antimicrobial Treatments added at application, such as Bio-Pruf™

Antimicrobial protection helps control mold, mildew, yeasts, algae and other troublesome microbes.

MMA Flooring
MMA Flooring

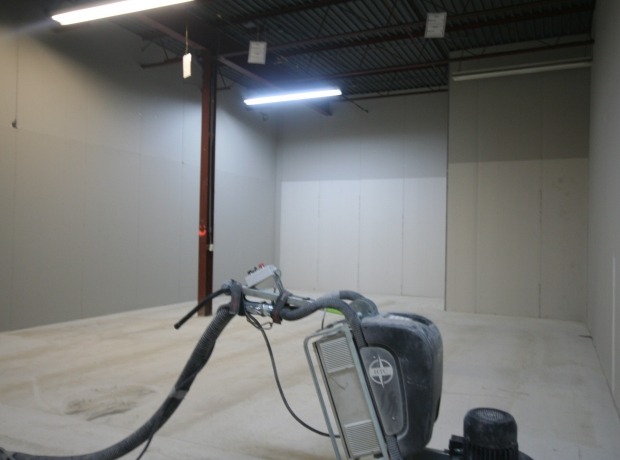

MMA Flooring Preparation
MMA Flooring Preparation

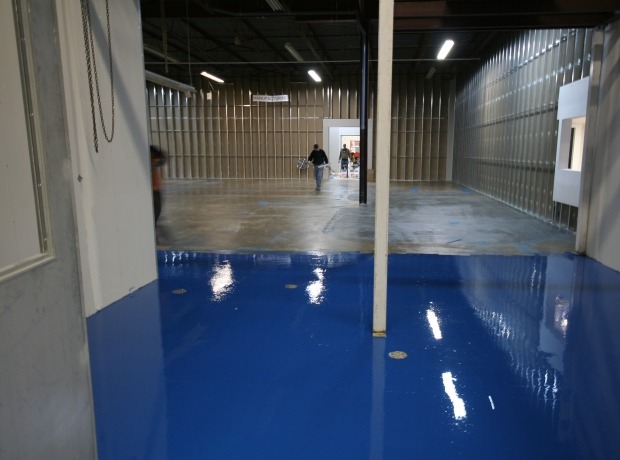

MMA Flooring
MMA Flooring

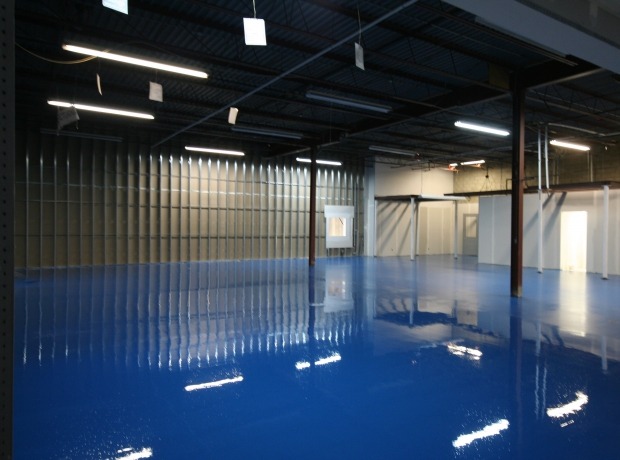

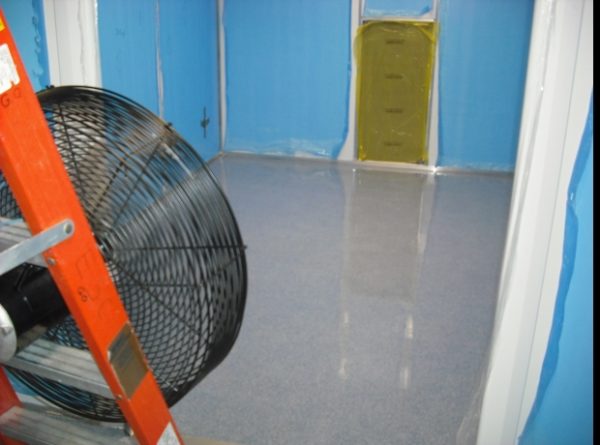

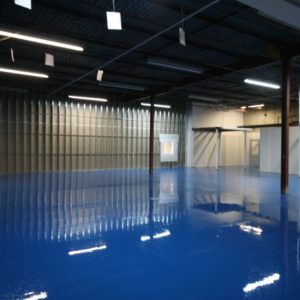

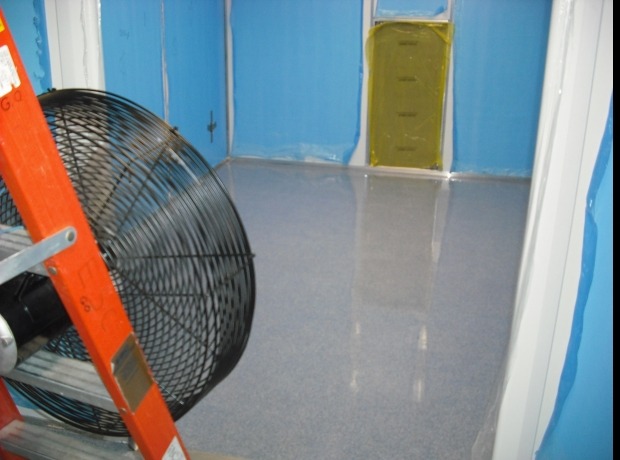

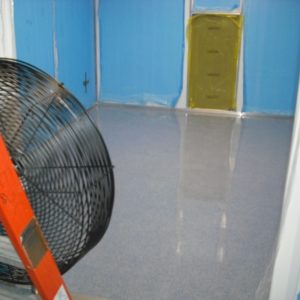

MMA Flooring Clear Coat
MMA Flooring Clear Coat
MMA Flooring Air Drying
MMA Flooring Air Drying

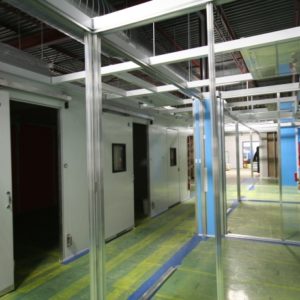

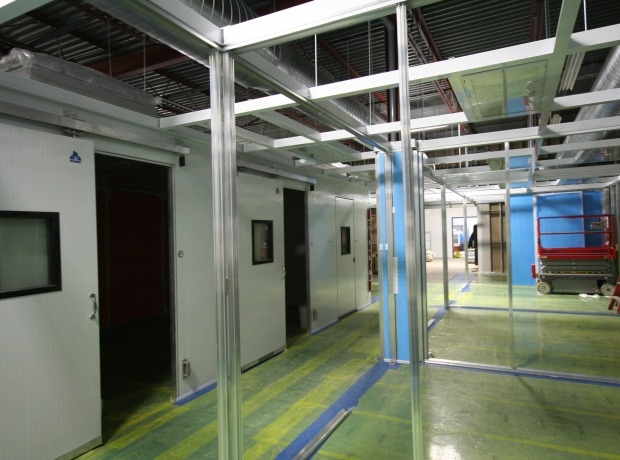

MMA Floor Covering
MMA Floor Covering





Polyurethane Cleanroom Flooring
Polyurethane Cleanroom Flooring

Urethane Formulations

Key Benefits:

Polyurethanes feature high abrasion and impact resistance and provide great resistance to a wide spectrum of chemicals such as hydraulic fluids, jet fuel, aliphatic and aromatic hydrocarbons, gasoline, acids, alkalis, alcohol in addition to many others.

Urethanes are able to withstand heavy traffic and repeated cleanings and still provide a finished appearance.

Polyurethane Systems can be applied with skid-inhibiting materials.

UV Light Resistance
High Gloss to Satin Finish
Excellent Abrasion Resistance
Unsurpassed Stain Resistance
Two-Component
Light Reflectance for Illumination of Workplace
Excellent Gloss Retention





VCT

Vinyl Composition Tile – VCT

Although not regularly used in Pharmaceutical or Healthcare Cleanrooms, VCT can be used in Class 7 & 8 Electronics Cleanrooms, as a budget conscious flooring choice.

It can be purchased in a Electro Static Dissipative (ESD) configuration.

Disadvantages:

Many seam joints, which will require extensive maintenance.

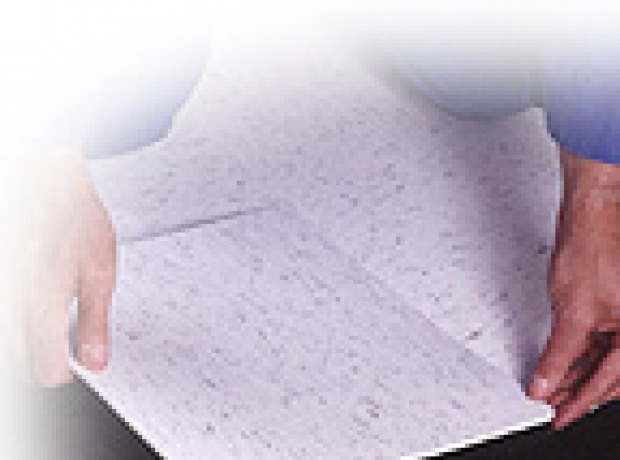

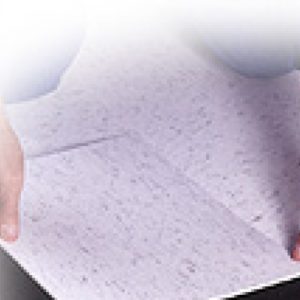

VCT Tile
VCT Tile





Raised Floor Perforated
Raised Floor Perforated

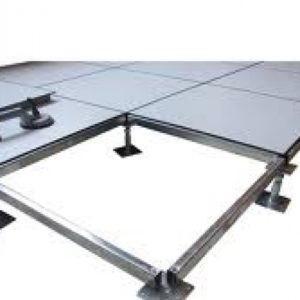

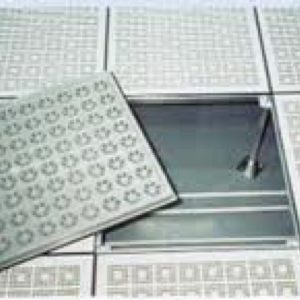

Raised Floors

Raised access floors are used to maintain laminar flow from a HEPA Filtered ceiling directly down to the floor as well as a method of accessing services to equipment.

Airflow Options

Perforated panels are available in a wide variety of hole configurations and sizes. These panels enable you to achieve air volume and pressure differential requirements through damperless regulation of the airflow.

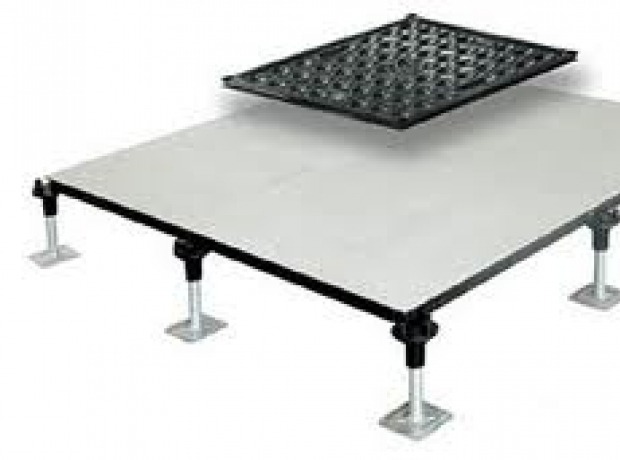

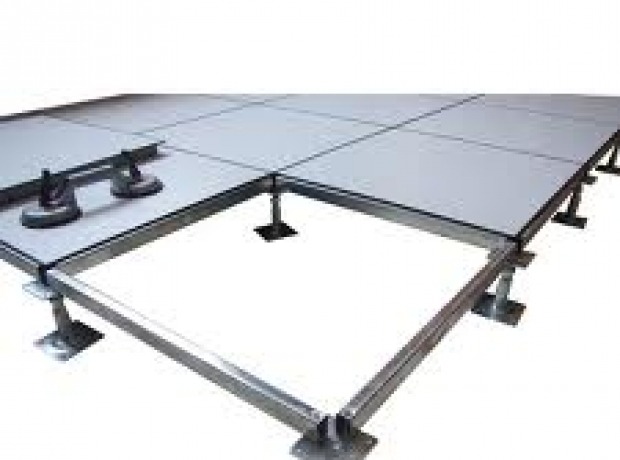

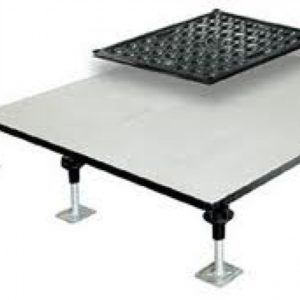

Raised Floor – Solid Panel

Solid Panel Benefits:

Available in a wide selection of conductive and static-dissipative coverings or coatings
Contains no ferrous materials to disrupt magnetic fields
Panel to pedestal contact ensures continuous conductivity
Excellent rolling load performance
Lightweight for ease of handling
Flame spread and smoke development rating: Class A

Solid Raised Floor
Solid Raised Floor

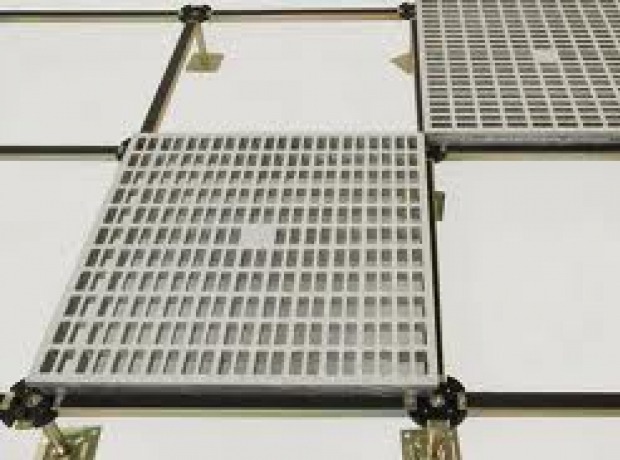

Raised Floor Grated
Raised Floor Grated

Raised Floor – Grated Panel

Grated Panel Benefits:

Designed to provide superior airflow
Unique octagonal design reduces rolling load vibrations
Fully compatible with solid panels
Can be dampered to regulate airflow
Available in a variety of coatings
Flame spread and smoke development rating: Class A

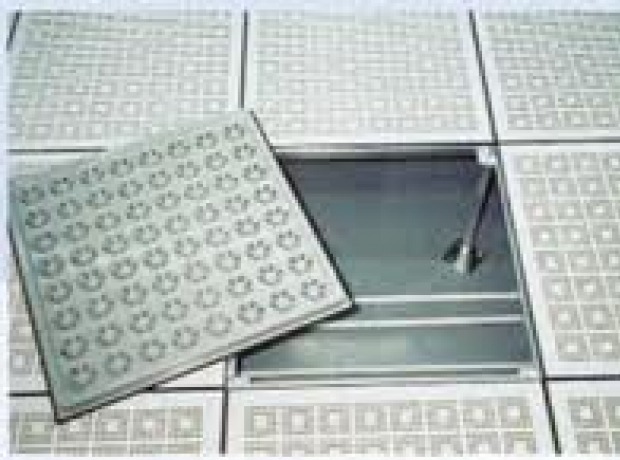

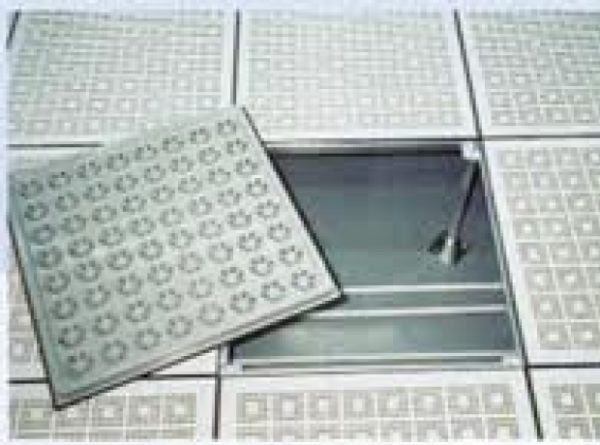

Raised Floor- Perforated Panel

Perforated Panel Benefits:

Designed to provide superior airflow
Unique octagonal design reduces rolling load vibrations
Fully compatible with solid panels
Can be dampered to regulate airflow
Available in a variety of coatings
Flame spread and smoke development rating: Class A

Raised Floor Perforated
Raised Floor Perforated
