Pharmaceutical Packaging Ceiling
Pharmaceutical Packaging Ceiling

Cleanroom Ceilings

Pharmaceutical Cleanroom Ceilings require a cleanable ceiling system, these can be:

Drywall
Gel Seal T Bar
Aluminum Panel System
T Bar

NonPharmaceutical Systems are:

T Bar – 1 1/2″
T Bar – 2″

We can help you understand the various systems available, and choose the best solution for your project.

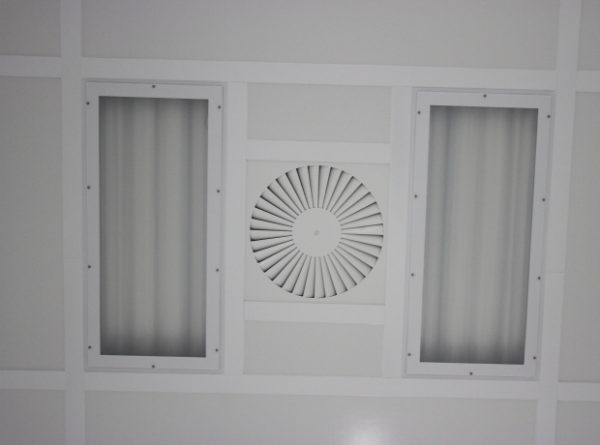

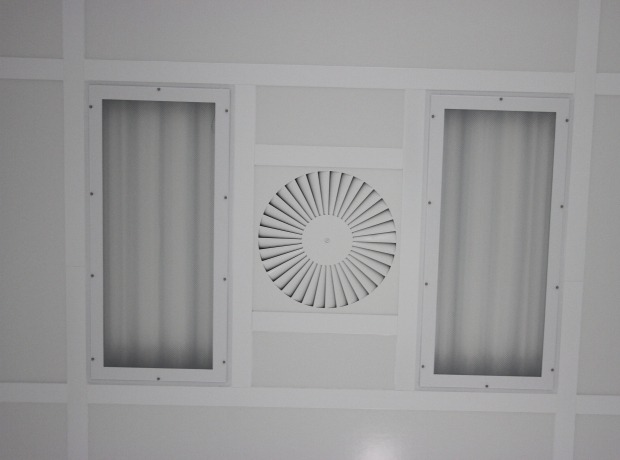

ALUMA-T Ceiling

Easy Installation, using large panels

Heavy Duty T bar can span larger areas, with out hangers

Can be walk-able if designed for the weight.

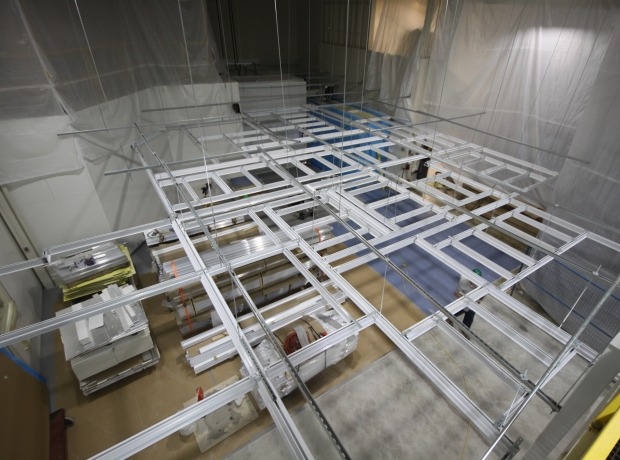

ALUMA-T Ceiling Framing
ALUMA-T Ceiling Framing

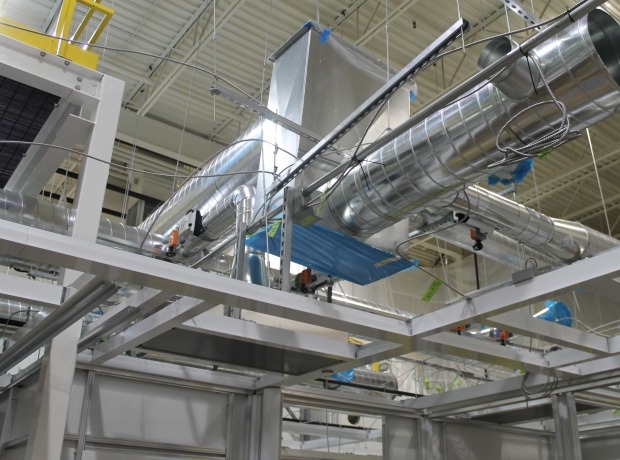

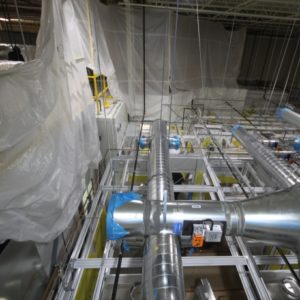

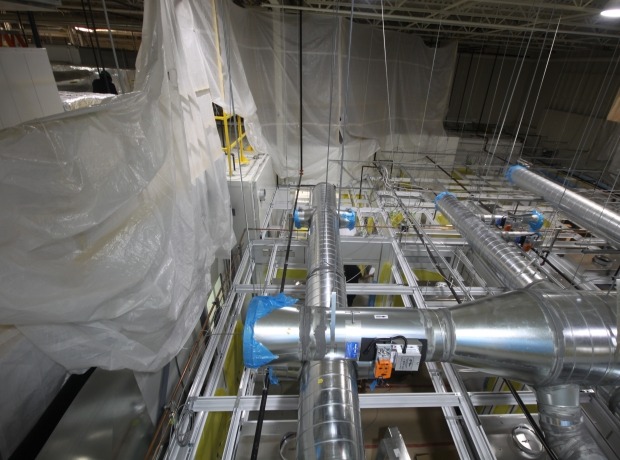

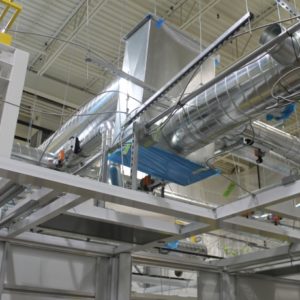

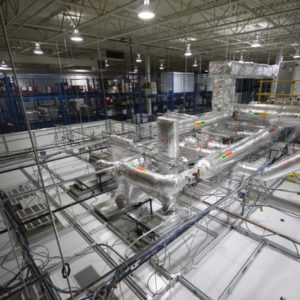

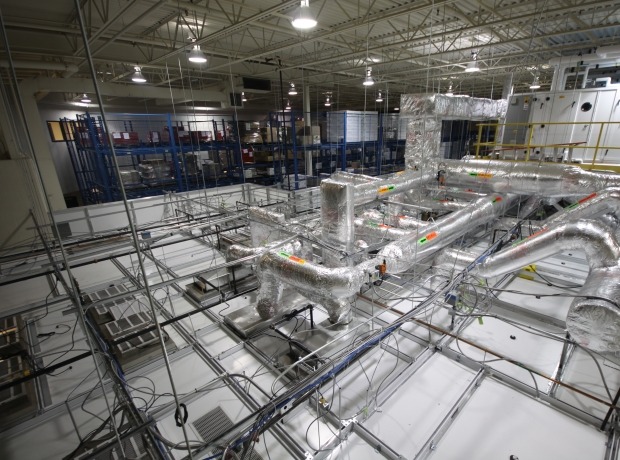

ALUMA-T Ceiling Framing & Ductwork
ALUMA-T Ceiling Framing & Ductwork
ALUMA-T Ceiling Framing & Ductwork
ALUMA-T Ceiling Framing & Ductwork
ALUMA-T Ceiling Framing & Ductwork
ALUMA-T Ceiling Framing & Ductwork

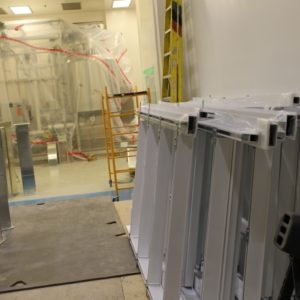

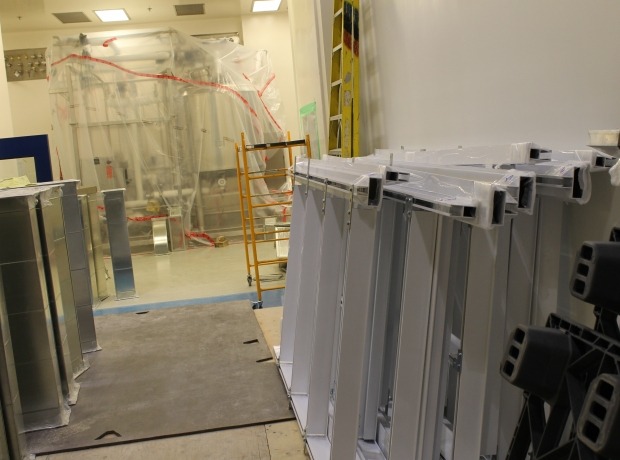

ALUMA-T Ceiling Ladders
ALUMA-T Ceiling Ladders
Cleanroom Wire Hung T-Bar
Cleanroom Wire Hung T-Bar

Gasketed T Bar

Advantages are:

First Cost
Wire Hung System is easy to Install

Disadvantages are:

Does not always seal 100%, suitable for use to ISO Class 6
Not easily relocated

Gel Seal T Bar

The advantage is the absolute Seal of the Filters, Lights and Panels

Labour intensive to install and difficult to modify.

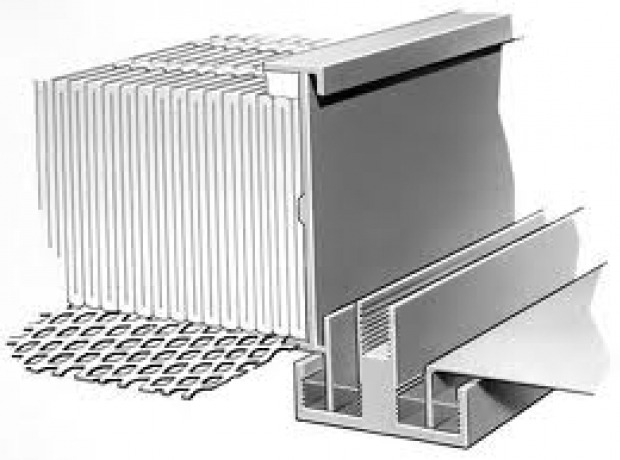

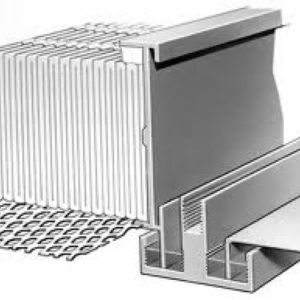

Gel Seal HEPA Filter
Gel Seal HEPA Filter

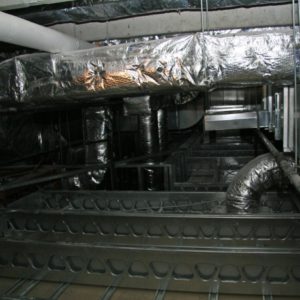

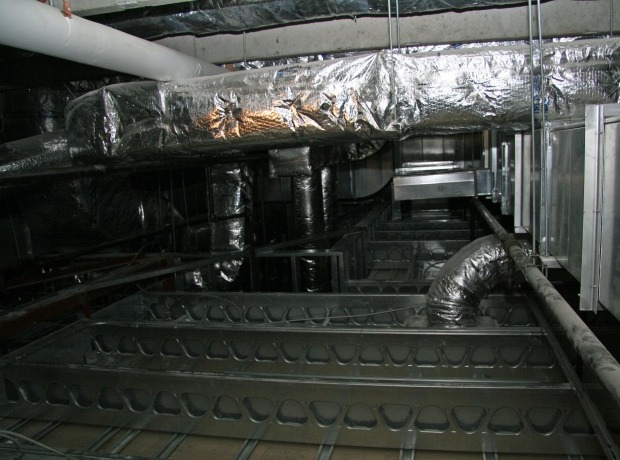

Cleanroom Drywall Ceiling Framing
Cleanroom Drywall Ceiling Framing

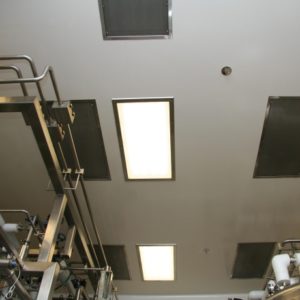

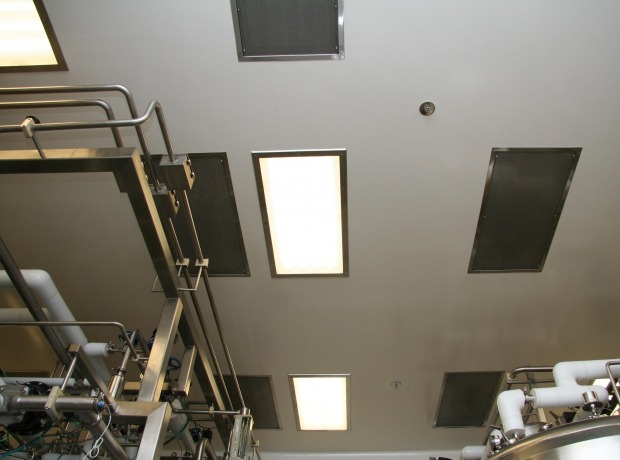

Cleanroom Drywall Ceiling
Cleanroom Drywall Ceiling

Drywall

The advantage is drywall is a common material, and installers are available almost anywhere.

Disadvantages are:

Installation is multi stage, involving the stud system, installation of the Drywall, taping and sanding, and a two part epoxy paint.

Dust particles are hard to Cleanup after construction.

Drywall is easily damaged exposing the drywall.

Material shrinkage is common requiring maintenance.

Can be prone to moisture damage, and possibly mould if the water is left on the Drywall
