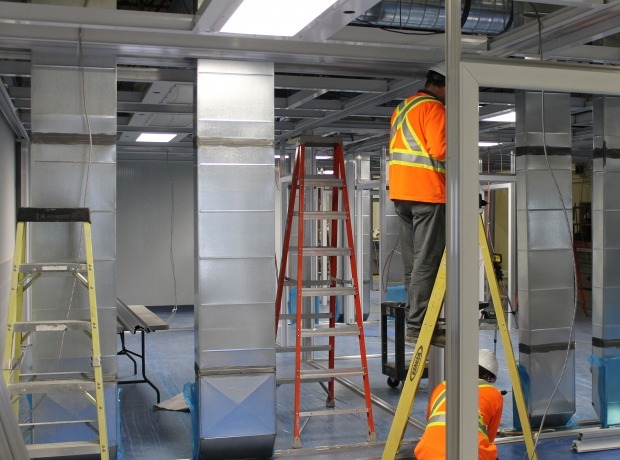

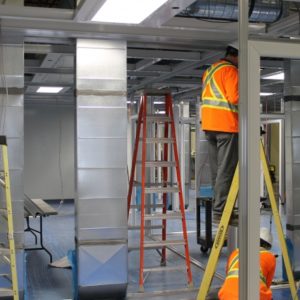

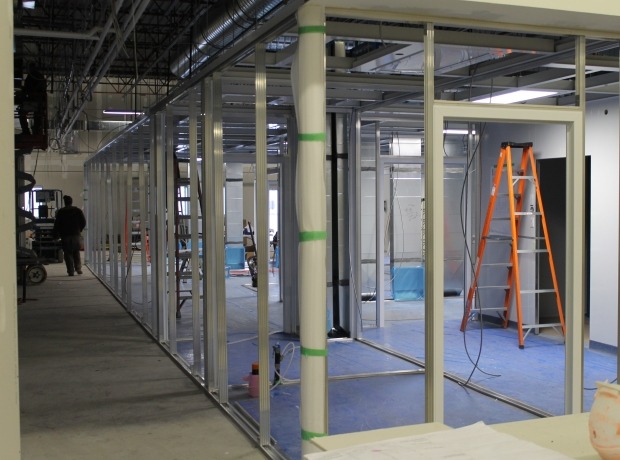

ALUMA1 Framing
ALUMA1 Framing
ALUMA1 Framing
ALUMA1 Framing

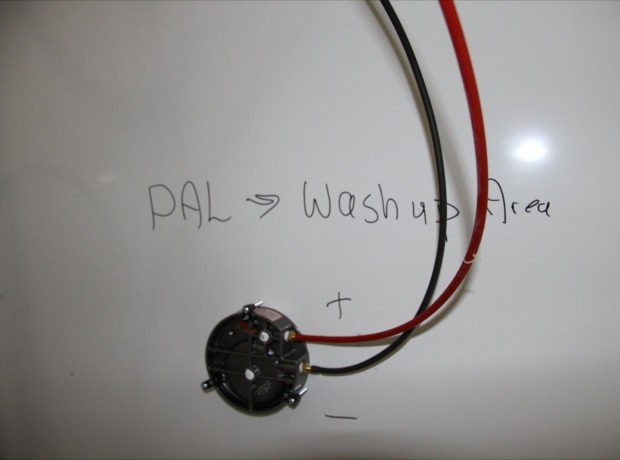

Magnehelic Back Side
Magnehelic Back Side

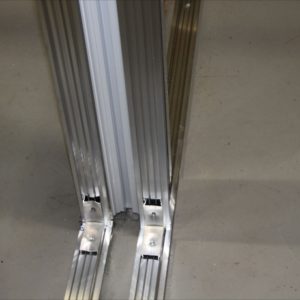

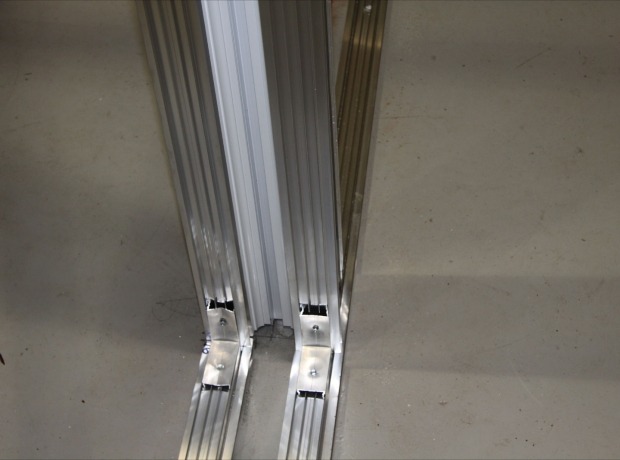

ALUMA1 Framing Floor Track & Large Brackets
ALUMA1 Framing Floor Track & Large Brackets

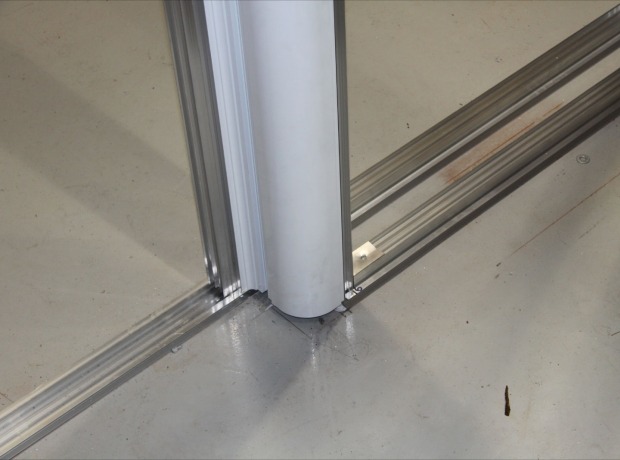

ALUMA1 Round Outside Corner
ALUMA1 Round Outside Corner

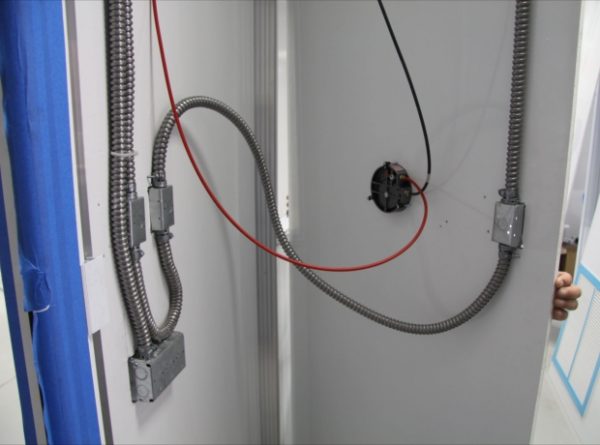

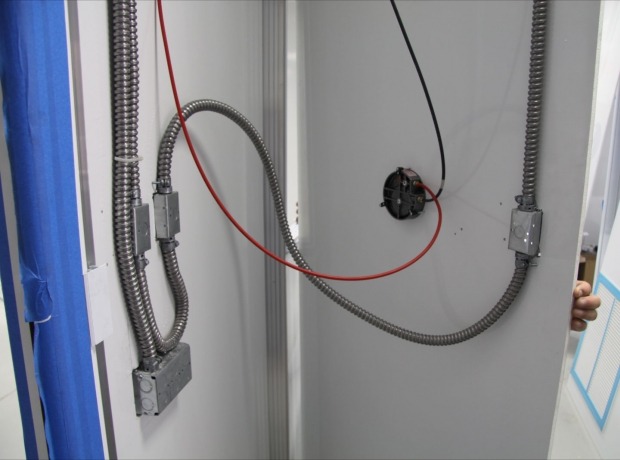

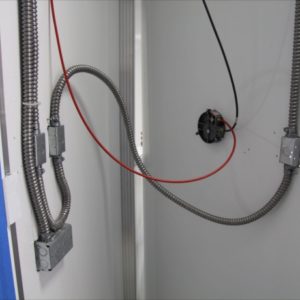

Electrical Magnehelic Rough In
Electrical Magnehelic Rough In

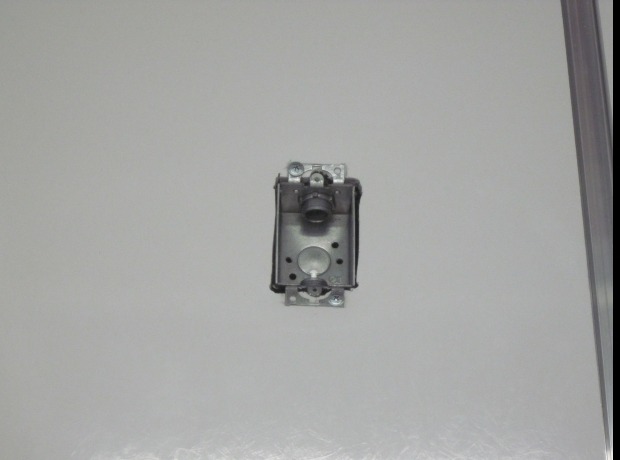

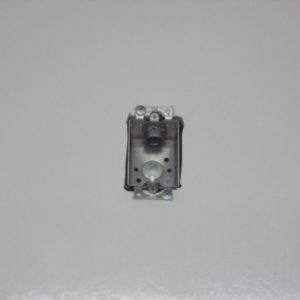

Electrical Rough In 1104 Box
Electrical Rough In 1104 Box

ALUMA1 Framing

The ALUMA1 Wall Systems consists of a Floor Track, Top Track, and Studs

There are two stud styles:

One that provides a a double sided wall nominally 3″ Wide with two 1/2″ Panels allowing a 2″ cavity for electrical and mechanical connections.

The second is used on a single sidewall, and has a strut on the reverse for attaching mechanical and electrical services

The flush window trim can be installed at any size or configuration
