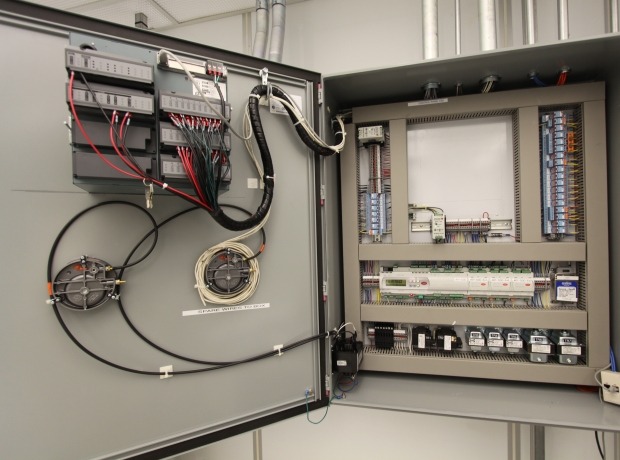

 CAREL Control System - 6 Zone Walk In Cooler

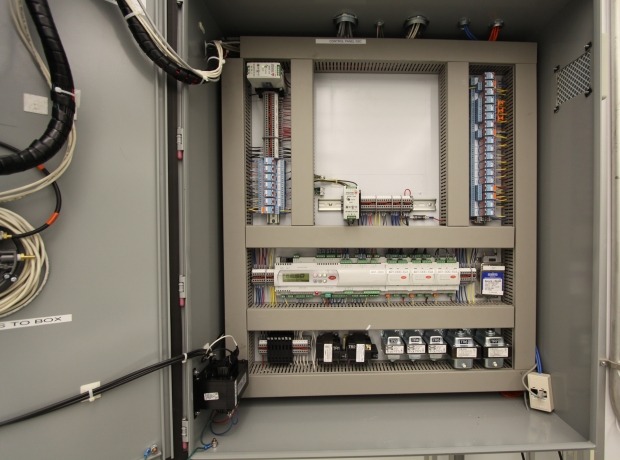

CAREL Control System - 6 Zone Walk In Cooler
CAREL Control System - 6 Zone Walk In Cooler

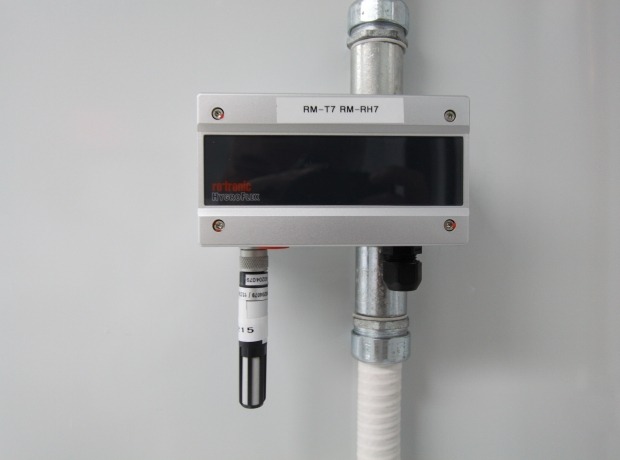

Temperature / Humidity Validated Sensor
Temperature / Humidity Validated Sensor

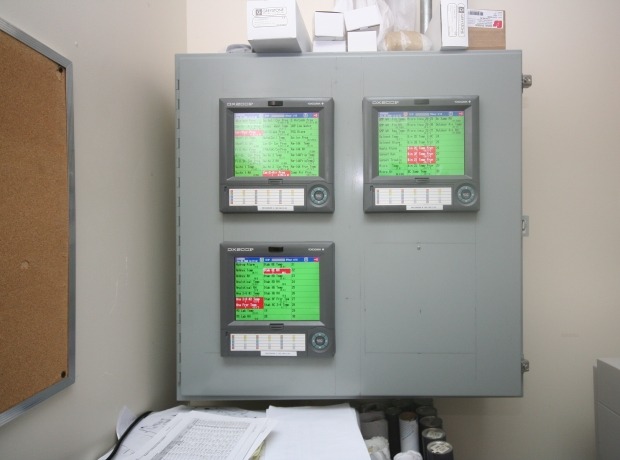

Yokogawa DAX Station 21 CFR Part 11 Validated System
Yokogawa DAX Station 21 CFR Part 11 Validated System

APOC 6 Zone Walk In Cooler

6 Zone Walk In Cooler System, with 6 to 8 oC and < 8% Relative Humidity.

The control sequence controls a Custom AHU that has Refrigeration, Primary Air Flow, Desiccant Dehumidification, and HEPA Filtration as a Primary System.

Secondary Systems included an Air Cooled Condenser if the building condenser water system has a failure, 6 Air Cooled Refrigeration Systems with Unit Coolers in case of Primary AHU Cooling Failure, and Dry Compressed Air in case of a Desiccant failure, with Dry Nitrogen as a third level of backup.

21 CFR Part 11 reporting monitored and reported with a Yokogawa DAX Station.
View Site >

Services Provided

  • CAREL Control System integrated with Yokogawa 21 CFR Part 11 Control System

Dalton Pharma Cleanroom 21 CFR Part 11

The existing Siemens HVAC Control System required replacement.

We researched a solution that would control the HVAC Systems, and the reporting for the monitoring of Temperature / Humidity & Pressure to meet 21 CFR Part 11.

The decision was made to separate the HVAC Control from the monitoring. In doing so we reduced the connection between the Facility Management System, and the Validated System.
View Site >

Services Provided

  • Installed CAREL Building Management System
  • Installed Yokogawa DAX Station 21 CFR Part 11 Validated Monitoring System

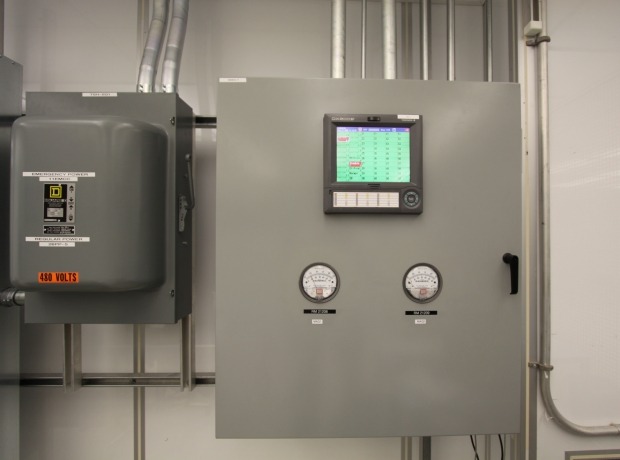

Yokogawa DAX Station 21 CFR Part 11 Validated
Yokogawa DAX Station 21 CFR Part 11 Validated
